Item Description

For upgrade or building tandem axle trailers.

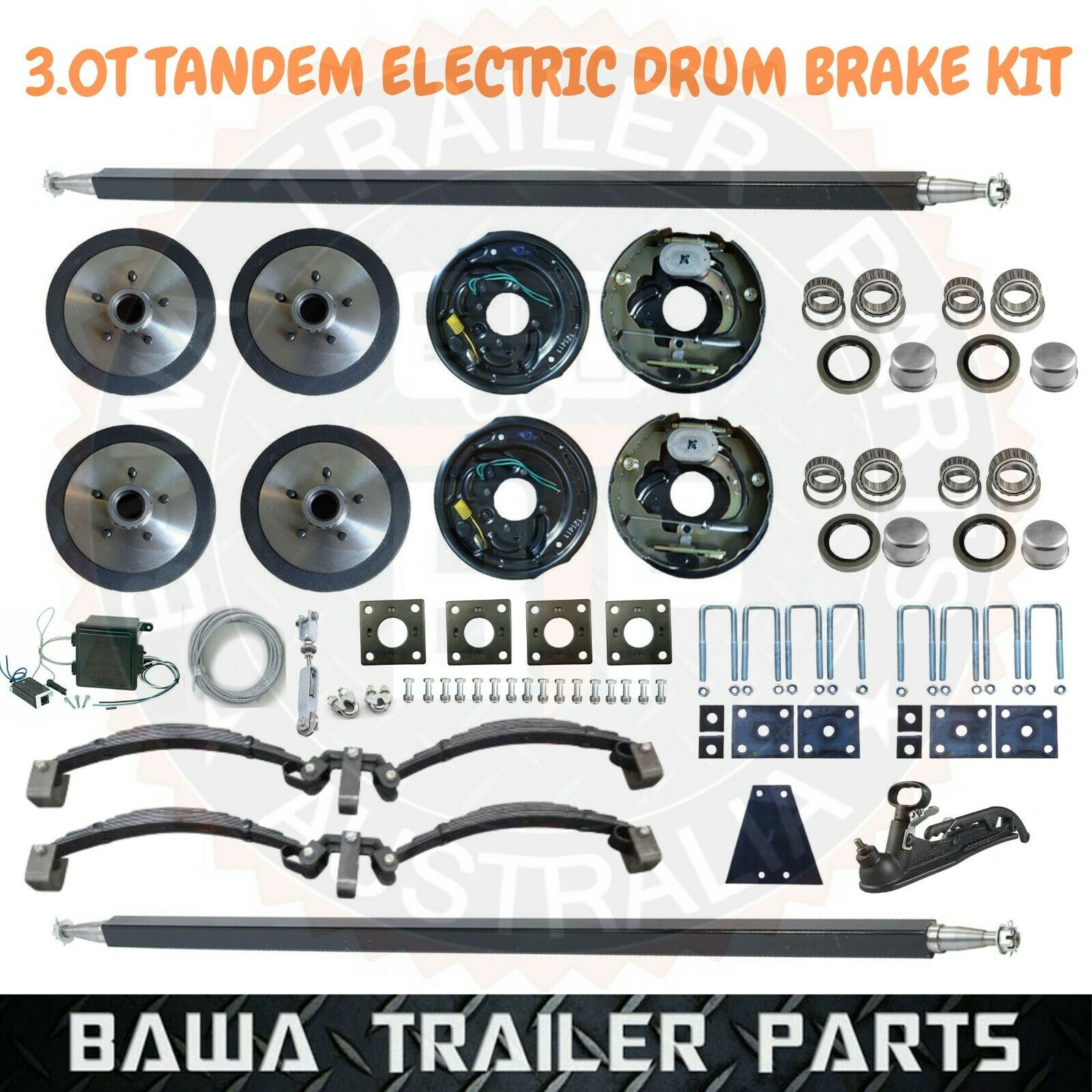

ORDER CONTAINS

• – 2 x 45mm Square Parallel Axles (Customer to Specify Length)

Axle Lengths Available: (From Tip to Tip)

(65’’, 67’’, 68’’, 70’’, 71’’, 73’’, 75’’, 76”, 77”, 78”, 79”, 81”, 85”, 87”, 89’’, 91’’, 93’’, 95”, 96’’, 97’’)

– ADDITIONAL $70 PER AXLE FOR CUSTOM LENGTHS

(Axle assembly requires deposit or full payment before we can begin on your order.)

· 1 x 60mm Wide 7 Leaf Tandem Rocker Roller Spring Set (Rating 3.0T)

– 1 x Tandem Spring Fitting Kit to suit 45mm Sq Axles (Includes 4 x fish plates, 8 x U-Bolts, 4 x Axle Pads)

· 4 x 10″ Electric Brake Hub Drums (Available in 5 Stud Ford, 6 Stud Land-cruiser Pattern)

Note: The center bore of your wheels should be more than 90mm to fit on to these drums!!!

– 4 x sets of Parallel Bearings with Seals, Dust Caps

· 2 Pairs of 10″ Electric Brake Assemblies (2 LH / 2 RH)

· 4 x Electric Brake Flanges – suit 45mm square Stub Axles (c/w/ Bolt / Nut/ Washer)

· 1 x 3.0T Electric Brake Coupling

– 1 x Coupling Plate

· 1 x Cable Adjuster

· 1 x 8Mtr Roll 4mm Winching Cable

· 2 x Cable Clips

– 1 x Break Away Unit (X-trail)

Extras to Replace The Above Standard Kit Part

1. Axle Assembly , if required will cost Additional $100.00 (Axle assembly requires deposit or full payment before we can begin on your order.)

OTHER:

Delivery calculated at check-out

Orders can be picked-up from our warehouse at 5 Iris Place, Acacia Ridge.

Thanks !!
