Item specifics
Brand New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller’s listing for full details.

Product Type: Galvanised Hydraulic Disc Brake Kit

Manufacturer Part Number: 10MDISCBKG

Brand: Bawa

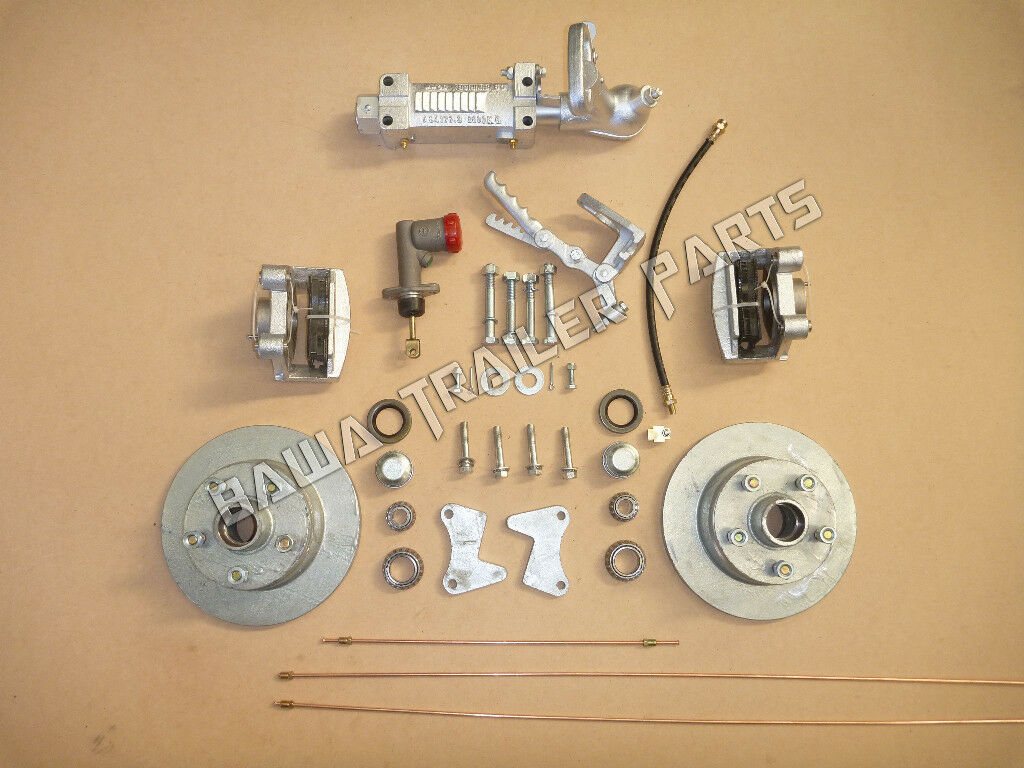

10” Hydraulic Disc Brake Kit Galvanised

Full Kit Contains

2 x Galvanised Hydraulic Discs (Available in – Ford, HT, or HQ)
(Cups will already be inserted for you. So you don’t have to worry about the hassle!)

2 x Ford SL or Holden LM Bearing Kits (2 x Large Bearings, 2 x Small Bearings, 2 x Marine Bearing seals, 2 x Dust caps)

2 x Galvanised HYDRAULIC Brake Calipers (with Stainless Steel Pistons)

4 x HYDRAULIC Disc Brake Pads

2 x Galvanised Mounting Plates with stainless bolts

1 x Galvanised OVERRIDE Coupling to suit 50MM tow ball with coupling bolts

1 x HYDRAULIC 3/4″ master cylinder

1 x Galvanised master cylinder bracket

1 x Flexi Hose with T piece

1 x Bundy tube set

WITH ALREADY FLARAED BUNDY TUBES!

Stud Pattern                                             PCD                               Stud Distance                 Stud Size

FORD                                   5 x 114.3mm             67.18mm              1/2″
HQ HOLDEN                       5 x 120.65mm           70.91mm             7/16”
HT HOLDEN                        5 x 108mm                 63.95mm             7/16″

Ford (SL) Bearings –  Designed to suit 45mm Square axles 1400Kg

• Bearing Numbers : L68149/LM12749

Holden (LM) Bearings – Designed to suit 39mm Round Axle and 40mm Square Axle

• Bearing Numbers: LM67048/LM11949
